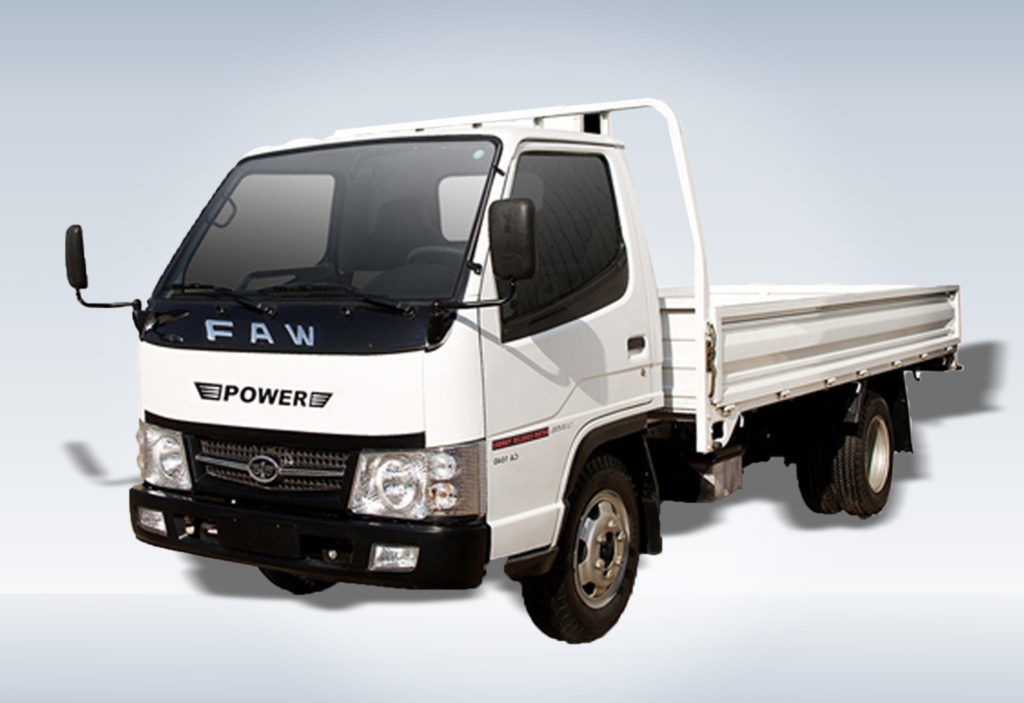

POWER TRUCK 2 Ton


Specification
SEETING CAPACITY 3
DIMENSIONS
Wheel Base (mm) 3100
Overall Length (mm) 5995
Overall Width (mm) 1880
Overall Height (mm) 2250
Desk Overall Length (mm) 4315
Desk Overall Width (mm) 1800
Desk Overall Height (mm) 400
Gross Vehcil Weight (kg) 5260
Curb Weight (kg) 2260
Tread Front (mm) 1385
Ground Clearence (mm) 180
Tuming Radius (m) 7.9
ENGINE
Model CA4D32-09
Type 4-Cylinder in line,Direct Injection,Diesel Engine
Max.Output (km/rpm) 89/3400
Max.Torque (Nm/rpm) 210/2100
Displacement 3168 cc
Aspiration Turbo Charged
Transmission Mechanical(5+1) with Synchronizers
Steering Manual (Recirculating ball Type)
BRAKES
Front Dual Circuit Hydraulic with Booster System
Rear Dual Circuit Hydraulic with Booster System
Fuel Tank Capacity 66 Liters
Wheel & Tyre Size
Wheel 6+1 (spare)
Front 6.50 – 16,10PR
Rear 6.50 – 16,10PR
SUSPENSION
Front Longitudinal Mounted Samlelliptic Spring With Dual Action
Telescopic Shock Absorber
Rear Longitudinal Mounted Samlelliptic Spring With Auxillary Spring & Dual Action Telescope Shock Absorber
